In the world of plastic assembly, finding a solution that balances high strength, aesthetic quality, and process repeatability can be a challenge. Traditional methods like ultrasonic welding or hot-air staking often come with trade-offs, such as material stringing, vibration damage to sensitive electronics, or inconsistent joint tightness.

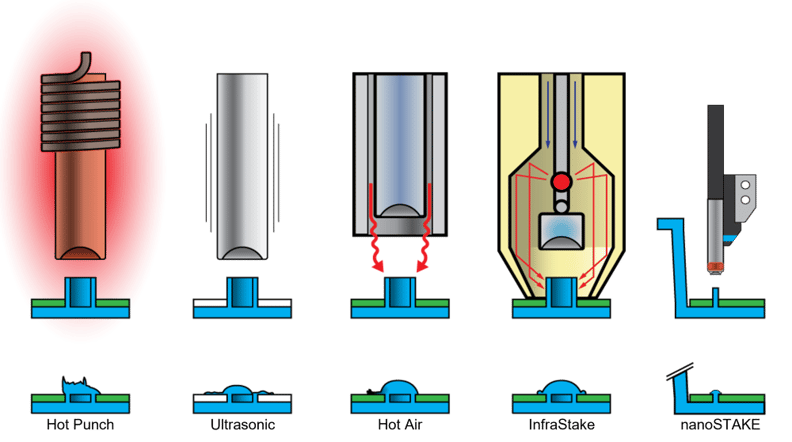

InfraStake® represents a shift in plastic staking technology. By utilizing infrared (IR) energy to precisely melt plastic bosses, it provides a mechanical joint that is as strong as it is visually clean. Here is a breakdown of how the technology works and why it is becoming the preferred choice for complex manufacturing applications.

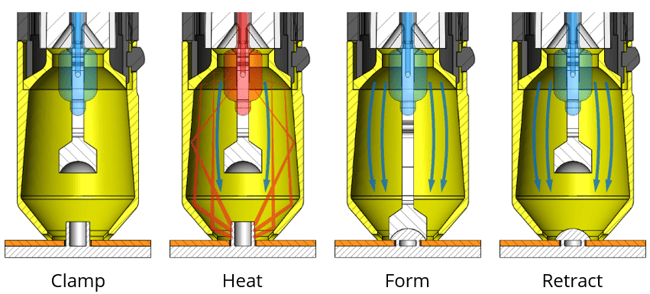

The InfraStake Process: Four Steps to a Perfect Joint
The secret to this technology's consistency lies in its four-step cycle. Unlike other methods that heat and form simultaneously, InfraStake separates these actions to ensure maximum control.
- Integrated Clamping: The process begins with the module clamping the parts together. This is a unique feature; the tool itself acts as the clamp, ensuring the components are held tightly in place before any heating occurs.
- Focused IR Heating: A 12V halogen lamp within the module emits IR energy. Using a gold-plated concentrator, this energy is focused radially into the plastic boss. This "side-in" heating approach is gentle and precise, making it safe for delicate surrounding materials.
- Cold Tool Forming: Once the plastic is semi-molten, the lamp shuts off, and a non-heated "punch" extends to form the stake. Because the tool stays cool relative to the plastic, there is no sticking or "angel hair" stringing.
- Controlled Cooling: High-flow air cools the plastic while the punch remains extended. The module stays clamped until the plastic has fully resolidified, preventing the joint from relaxing and ensuring a tight finish every time.
Why Manufacturers Are Making the Switch
Beyond the basic process, several key advantages set this technology apart:
- Exceptional Strength: Because the IR energy softens the plastic without introducing the high-frequency stress of ultrasonics, the finished joints typically retain approximately 95% of the parent material’s strength.
- Aesthetic Excellence: The use of a cool forming tool results in a highly repeatable, "class-A" finish. It eliminates common defects such as burning, charring, and surface deformation.
- Electronics-Friendly: With zero vibratory energy, it is an ideal solution for retaining printed circuit boards (PCBs) or other sensitive electronic components that could be damaged by traditional welding methods.
- Material Versatility: The technology is effective on nearly any melt-processable plastic, including high-heat materials like PPA or PPS and plastics with heavy fillers such as glass, talc, or carbon fiber.
Intelligence Through Statistical Process Control (SPC)
One of the most significant InfraStake benefits for high-volume production is the built-in SPC monitoring. Each module is equipped with a linear potentiometer that measures the boss height twice during every cycle:
- Pre-Stake Check: Ensures the boss is present and not deformed before the cycle starts.
- Post-Stake Check: Confirms the final stake height is within the user-defined limits.
This data allows manufacturers to catch "short shots" or material variations in real-time, ensuring that only good parts move down the line.
Versatility in Design
InfraStake modules come in several sizes (including 20mm and 32mm diameters) to handle larger applications. The modules can also be mounted in any orientation—vertical, horizontal, or at an angle—allowing for seamless integration into custom automation or manual workstations.
Summary
InfraStake offers a rare combination of precision, strength, and reliability. By focusing energy only where it is needed and maintaining total control over the cooling process, it provides a superior mechanical joint that meets the rigorous demands of the automotive, medical, and consumer electronics industries.
To see the technology in action or to discuss a specific application, feel free to reach out for a technical consultation or a live demonstration.
